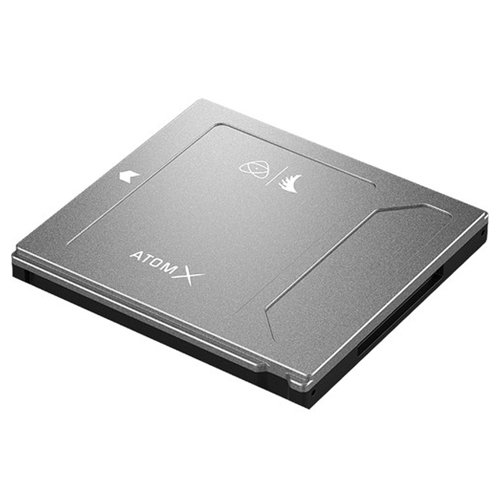

Angelbird AtomX SSDmini (1TB)
Angelbird AtomX SSDmini (1TB) / Atomos Kayıtçınız İçin Uyumlu SSD
Teknik Özellikler
|
CAPACITY |
1TB |
|
FORM FACTOR |
SSDmini Compatible with * |
|
DIMENSIONS |
80.0 x 75.5 x 9.3 mm (3.15 × 2.97 x 0.37 in) |
|
AĞIRLIK |
~ 90.0 g | ~ 3.2 oz |
|
SEQUENTIAL READ SPEED |
560 MB/s |
|
SEQUENTIAL WRITE SPEED |
540 MB/s |
|
ACCESS TIME (R/W) |
~ 65 µs | 40 µs |
|
Reliability |
|
|
MTBF |
2,400,000 hours |
|
DATA RELIABILITY |
Built-in EDC | ECC function |
|
DATA RETENTION |
10 years at 25° |
|
ENDURANCE |
2 TB: up to 6,000 TBW |
|
CERTIFICATIONS |
RoHS, CE and FCC compliant, REACH |
|
Electrical |
|
|
DC INPUT VOLTAGE |
5 V ± 10 % |
|
POWER USAGE (IDLE/MAX) |
2 TB: 0.35 W / 3.5 W |
|
Technical |
|
|
INTERFACE |
SATA 6 Gb/s, 3 Gb/s and 1.5 Gb/s supported, SATA 3.0 compliant |
|
OVER PROVISIONING |
~ 9 % |
|
FEATURES |
Temperature sensor, overload protection, TRIM, ECC, EMS protection, built-in cache, SMART, NCQ |
|
Environmental |
|
|
SHOCK RESITANCE (OPERATING) |
1000 G/0.5 ms |
|
VIBRATION RESISTANCE (OPERATING) |
2.17 GRMS |
|
OPERATING TEMPERATURE |
-20 °C | 70 °C |
|
STORAGE TEMPERATURE |
–40 °C | 85 °C |
|
OPERATING HUMIDITY |
5 % to 95 % non-condensing |
|
*Compatibility list |
|
|
NINJA V | NINJA FLAME | NINJA INFERNO | SUMO 19* | SUMO 19M* | SHOGUN FLAME | SHOGUN INFERNO | SHOGUN STUDIO* *SUMO 19 / 19M & SHOGUN STUDIO require to use the Atomos SSDmini adapter handle. |
|
|
Supported Codecs |
|
|
4k60p 2k240p Apple ProRes / Avid DNx 5.7k30p 4k60p 2k240p Apple ProRes RAW 4k30p CDNG |
|
|
Package Content |
|
|
• AtomX SSDmini • Activation code for the full limited warranty |
|
| Harddisk Kapasitesi | : | 1 TB |
